The LiFePO4 Battery Setup That Finally Made My Cabin Grid-Independent

My hunting cabin sits on 40 acres in central Florida, about 90 minutes from the nearest hardware store and a very long way from the nearest power line. For three years I tried to make two 100Ah AGM batteries work. They ran the lights and a small fan for one night, maybe two if I was careful. By the second morning the lights were dimming and I was dragging the generator out of the truck. The generator worked fine, but it was loud, it needed fuel I had to haul in, and it felt like I was solving the same problem every trip.

I switched to LiFePO4 chemistry about 18 months ago after reading through the specs more carefully than I probably needed to. The short version: LiFePO4 lets you actually use 80 percent of rated capacity before the BMS starts throttling output. AGM chemistry wants you to stop at 50 percent if you want the battery to last more than a couple of seasons. That means a 100Ah LiFePO4 battery gives you roughly 80 usable amp-hours. My two AGM batteries were giving me about 100 usable amp-hours total. Four LiTime 100Ah batteries, wired correctly, give me 320 usable amp-hours at 12V. That is a different weekend.

The AGM setup felt like a camping compromise. The LiTime bank feels like infrastructure.

I went with the LiTime 12V 100Ah because the price was straightforward and the specs held up under scrutiny. The internal BMS handles low-temperature charge protection, high-current draw from the inverter, and cell balancing without needing an external balancer. I bought four of them over two months, running two first to see how the system behaved before adding the second pair. The first two carried a full hunting weekend with no surprises. I added the second pair before deer season and have not touched the generator since.

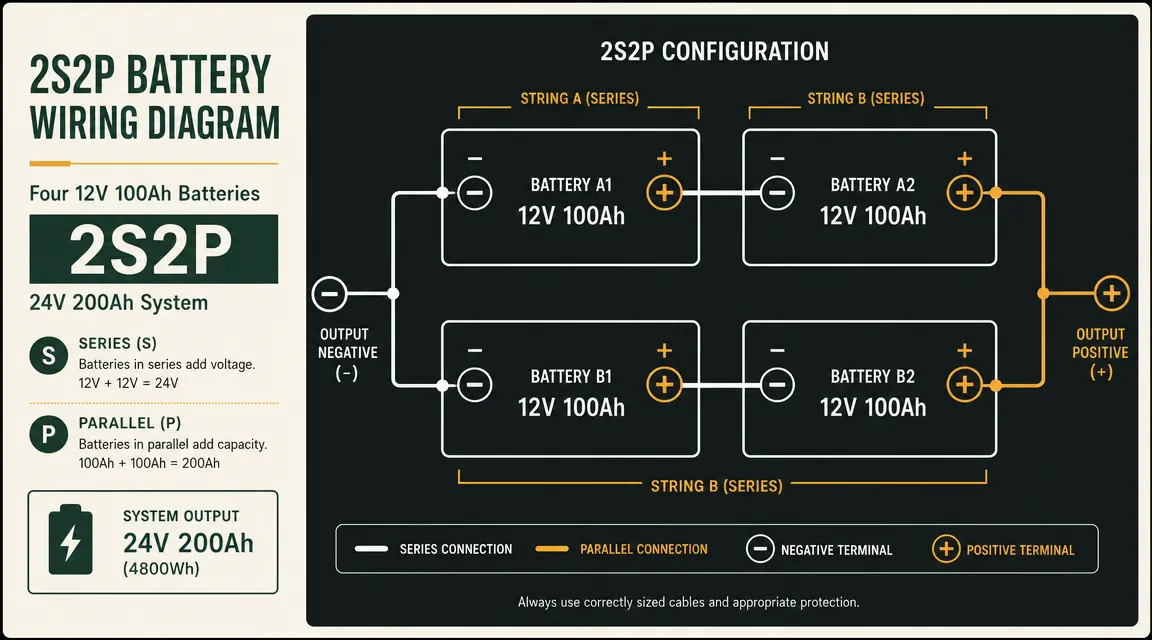

The wiring setup matters as much as the batteries themselves. I run the four batteries in a 2S2P configuration, meaning two pairs wired in series to reach 24V, then those two pairs wired in parallel to double the amp-hours at that voltage. The result is a 24V 200Ah bank, which is 4800Wh total. With 80 percent usable depth of discharge I have about 3840Wh to work with before the BMS starts restricting output. Two Renogy 200W panels feed a Renogy 40A MPPT charge controller into that 24V bank, and on a clear Florida day that refills about 1600Wh of capacity in a decent six-hour window.

Here is what the cabin actually runs from that bank. A 12V LED light strip wired directly to the bus draws about 1.5A at 12V, or around 3A equivalent at 24V, call it 72Wh per night for four hours of use. A 12V fan at medium speed is around 2A, so another 48Wh over eight hours of sleeping. The real load is a 12V mini-fridge that runs on a 120V inverter and pulls about 45W average, which comes to roughly 360Wh per day with a half-decent ambient temperature inside the cabin. And I run a CPAP every night. My specific machine, a ResMed AirSense 10 without the humidifier, draws about 10W, which is 80Wh for a full eight-hour night. Add it up and a full 24-hour cycle at the cabin runs about 560Wh in real consumption. My 3840Wh usable bank covers nearly seven days without any solar input at all. With two panels refilling the bank each day I have not come close to a low-battery alarm yet.

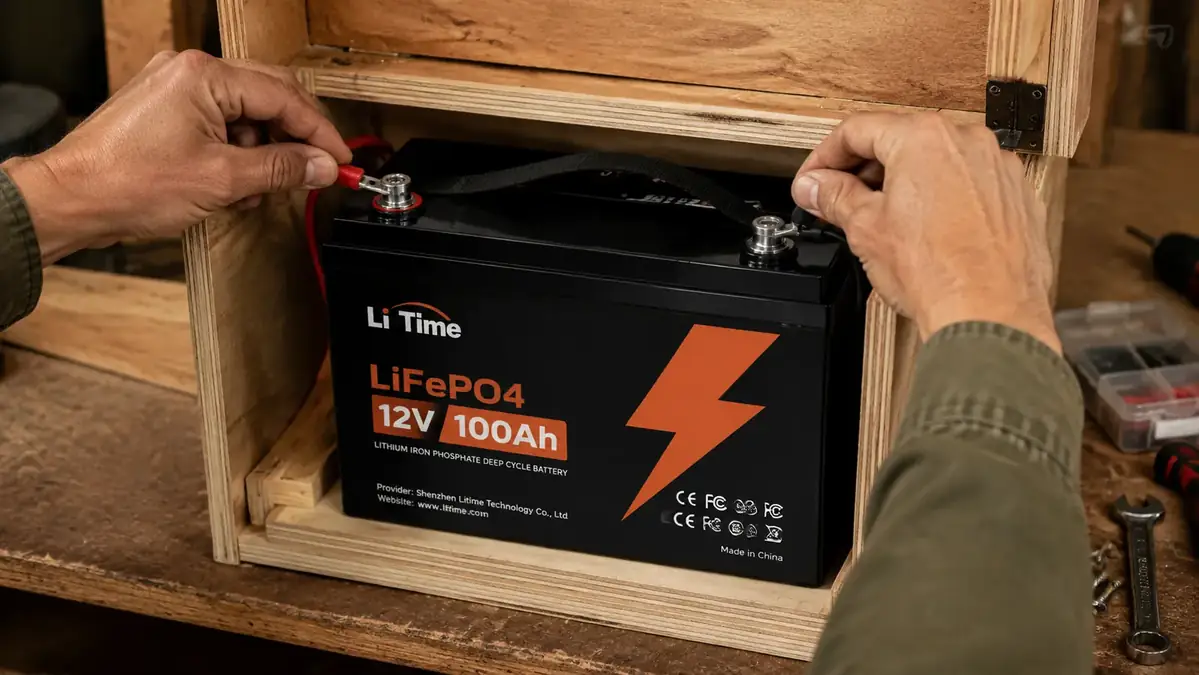

The one thing worth knowing before you buy: the LiTime batteries ship without terminals attached on some configurations, and you will want 4 AWG copper cable or heavier for any run longer than two feet between batteries and inverter. I used 2 AWG for the main bus runs because the inverter can pull 1500W peak and I did not want heat building up in the cables. The BMS on each LiTime unit has a 100A continuous discharge rating, which is comfortable for most cabin loads. If you are running a full-size refrigerator or a power tool you will want to check your inverter's peak draw against that spec.

What I'd Tell You If We Were Sitting at My Kitchen Table

If you are building a small off-grid system for the first time and you are trying to figure out whether LiFePO4 batteries are worth the price premium over AGM, the honest answer is yes, but only if you are willing to think through your actual load. The batteries do not solve a poorly planned system. If you wire four 100Ah batteries and then plug in a 1500W space heater, you will drain them in a couple of hours and wonder why the expensive batteries did not help. LiFePO4 buys you density, cycle life, and depth of discharge. You still have to match capacity to consumption.

That said, for a cabin with realistic loads, the LiTime 100Ah batteries have been the most reliable thing I have added to this system. They arrived with a partial charge, took a full initial charge without issues, and the integrated BMS has handled every load I have thrown at them without a single cutoff event in 18 months of regular use. I am not going to tell you they are the absolute best battery at any price. But for what they cost, they are the right call for most people building a first or second off-grid system. Four of them plus a decent MPPT controller and a couple of solar panels is a weekend-ready setup that will last longer than the cabin needs it to.
